Techline components
Techline vacuum solutions are high-class gripper systems, area grippers and dedicated equipment designed for extremely demanding industrial environments. These products have been optimized for uncompromising operation in harsh, highly dusty conditions typical of woodworking and furniture manufacturing.

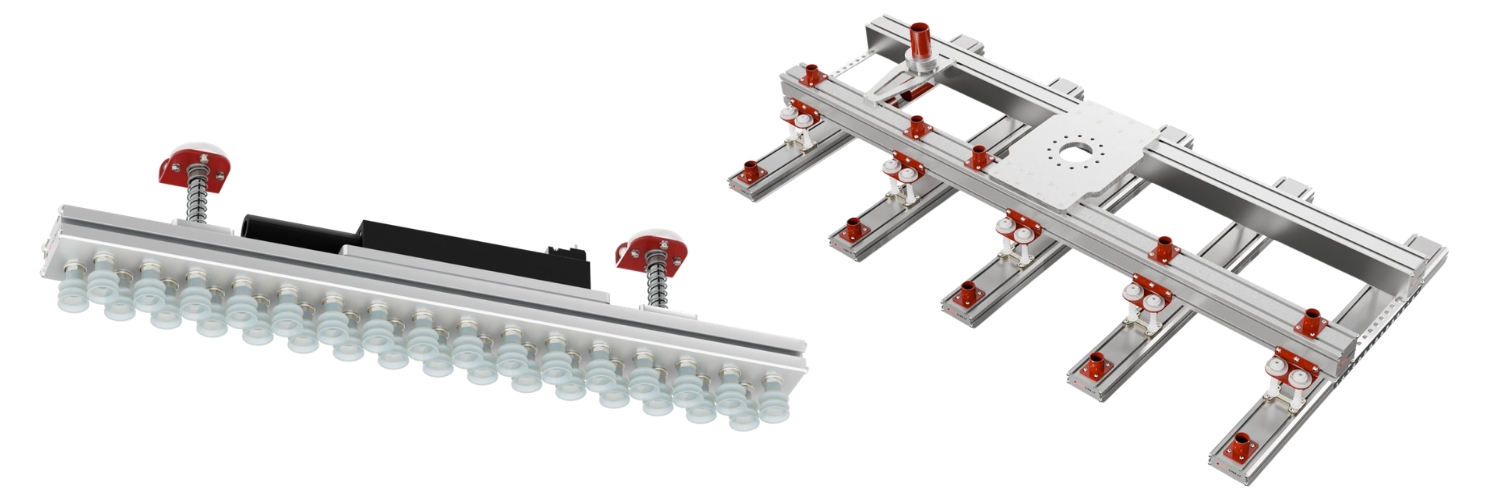

Robotic tools
Ready to integrate, specialized robotic arms and mechanical robotic tools (such as the TL1 model) dedicated to optimizing repetitive handling tasks on production lines.

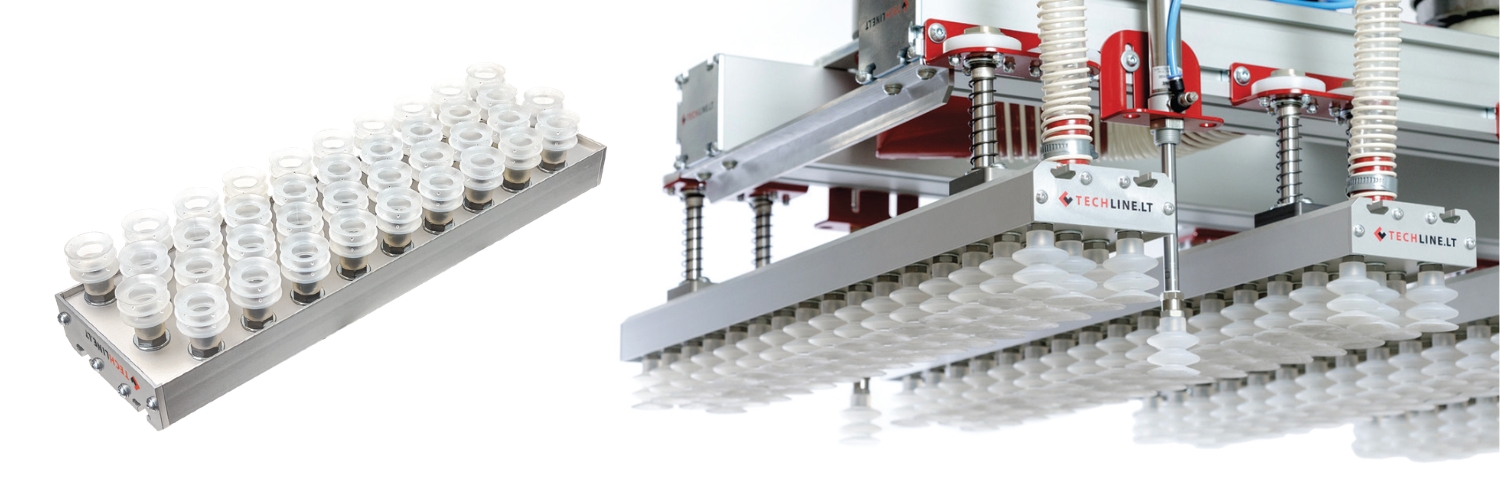

Vacuum grippers
A wide spectrum of automated area grippers designed for specific palletizing and assembly applications.
- Grippers with suction cups - modular vacuum matrices equipped with various durable bellows or flat suction cups.
- Grippers with foam sealings - flagship multi-channel plate grippers based on the GBK series (with flat self-closing check valves), GBA series (with round valves) and the economical GBE series (utilizing flow restrictors). Standard models feature check valves that automatically close inactive vacuum ports, eliminating vacuum loss when the gripper is only partially covered by the product.
- Grippers with integrated ejector - autonomous grippers that do not require external vacuum pumps, generating high vacuum directly from compressed air.
- Complete gripper systems - fully equipped, ready to connect gripper modules (plug & play) with factory pre-installed cabling, sensors, level compensators and an ejector system.

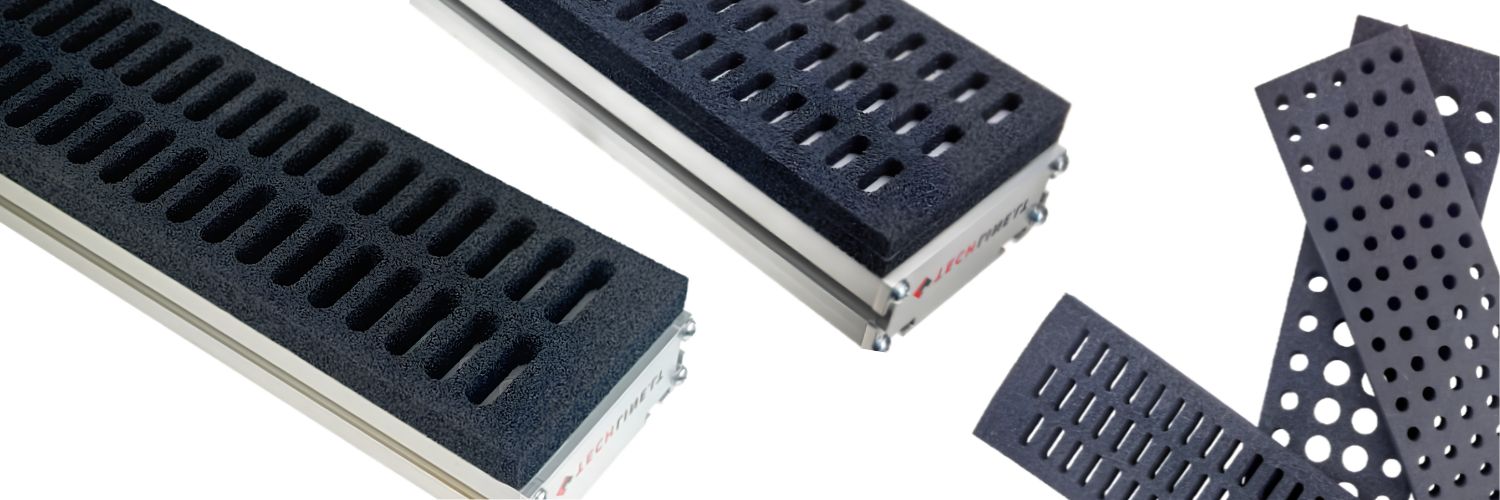

Foam sealing mats
Extremely flexible sealing mats made of soft and durable cellular rubber (working range from -40°C to +120°C). They adapt perfectly to the structure of the handled workpiece, eliminating any risk of scratching or marking. Widely used in the harsh conditions of the woodworking, furniture and packaging industries.
- Hard foam sealings - type K - higher density, ensuring stability and grip precision when handling flat and smooth surfaces.
- Soft foam sealings - type M - low density and exceptional elasticity, dedicated to rough boards and irregular wooden elements.
- Foam sealings with filters - type F - an integrated high-density filter layer prevents wood dust, sawdust and fine chips from entering the vacuum system, protecting ejectors and pumps from premature wear.
Vacuum components
High quality mounting and control accessories essential for the precise construction, expansion and calibration of robot gripper systems (EOAT).
- Aluminum profiles - ultra-lightweight and extremely rigid AP profiles with cross-sections of 40x40 mm (APS), 40x80 mm (APM) and 100x100 mm (APL) featuring T-slots, serving as the structural frame of the entire gripper.

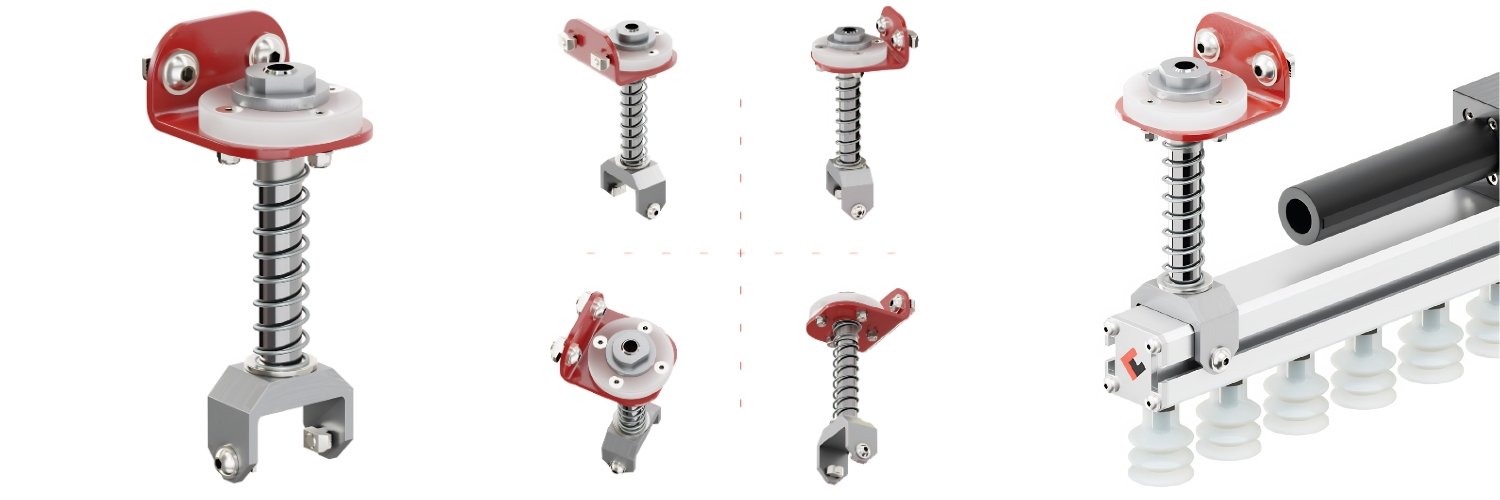

- Level compensators - modular level compensators (EK series, e.g., EK 1-1, EK 2-1) that cushion the physical impact during robot approach and compensate for height differences in pallet stacks.
- Flow restrictors - precision throttling nozzles (diameters from 0.7 to 1.5 mm) that limit pressure losses in the system if a suction cup loses contact with the material.
- Flow valves - self-closing valves that automatically block airflow in suction zones not covered by the workpiece.
- Rotary joints - special couplings that prevent twisting, tangling and mechanical wear of flexible pneumatic hoses during robot axis rotation.

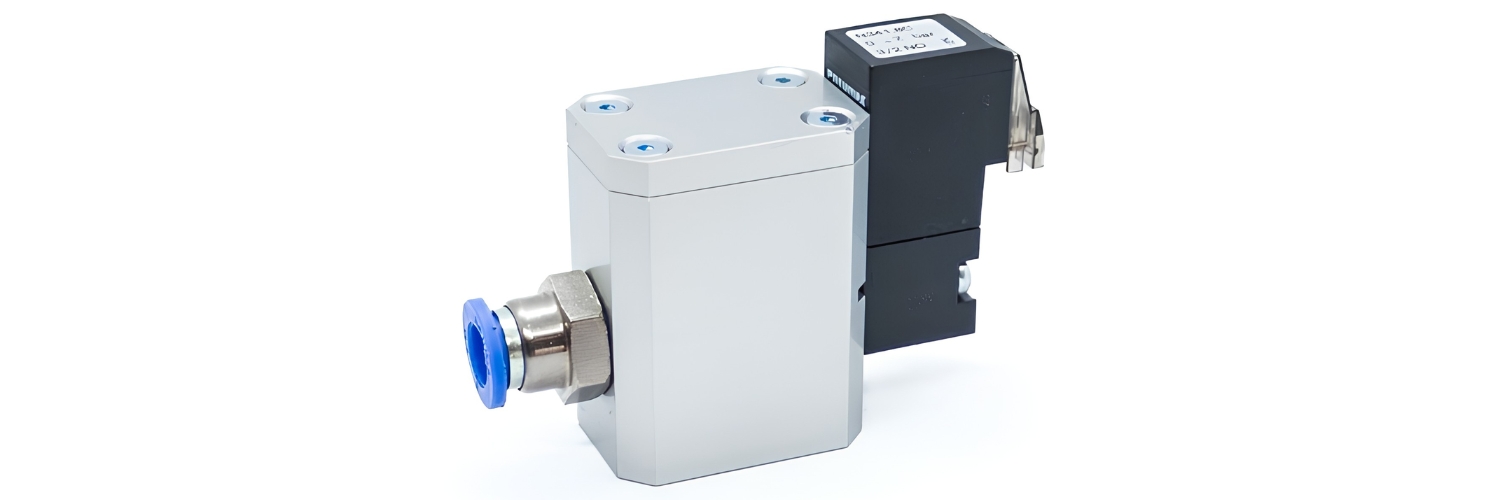

Solenoid valves
Fast-acting control solenoid valves (such as the EV 1 model) designed for instantaneous activation, vacuum retention and generating a precise blow-off pulse for quick and clean workpiece release.

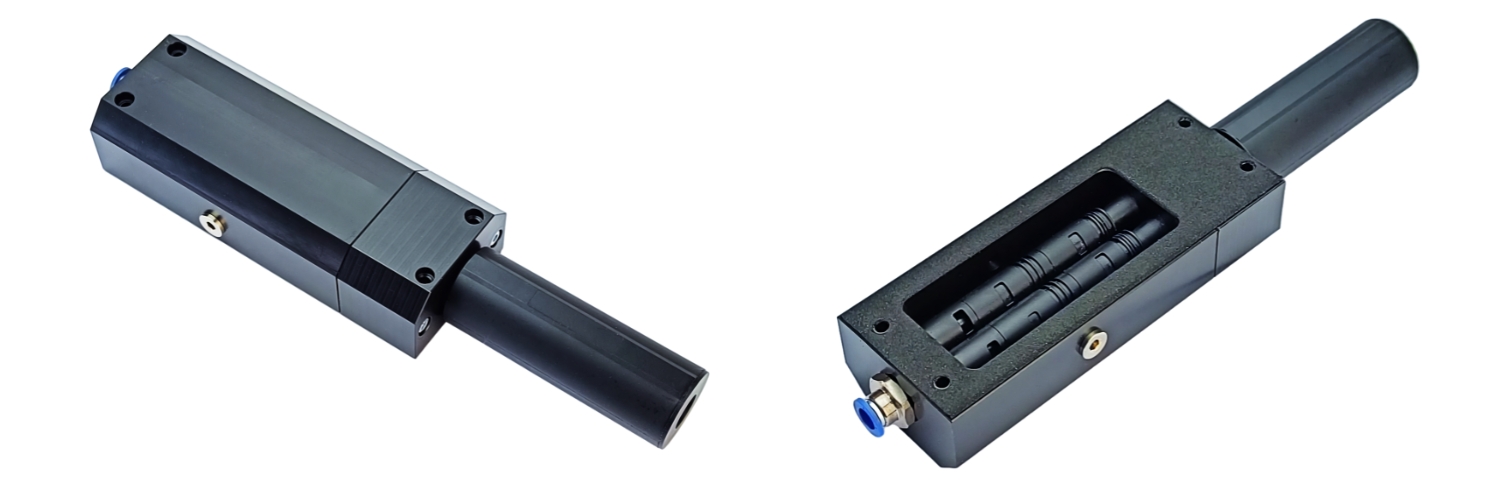

Pneumatic vacuum generators
Energy-efficient, single- and multi-stage pneumatic ejectors (such as the IZ2 model) based on multi-stage Venturi nozzle technology, characterized by instantaneous response times and low compressed air consumption.

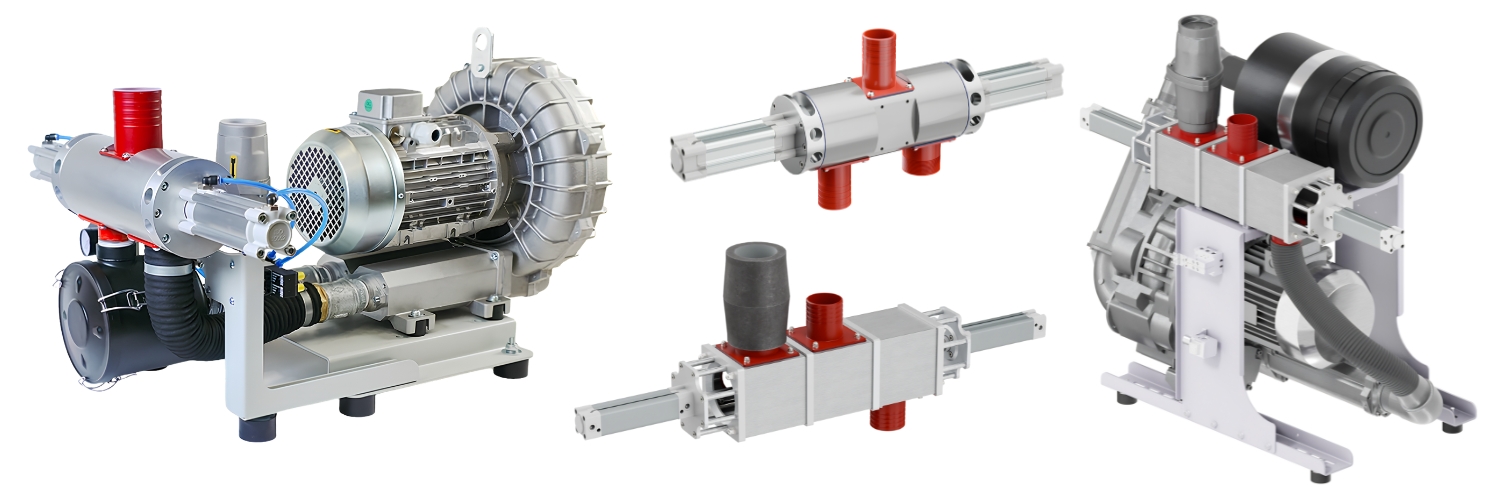

Vacuum generation units
Integrated, ready to connect vacuum power stations combining a vacuum generator, protective filters and digital grip-monitoring sensors into a single compact housing, ideal for continuous operation in control cabinets.
