TX Series
TX Series robots offer specifically the ideal solution for high-speed production cycles, ensuring high performance while maintaining low energy consumption.
TX2100

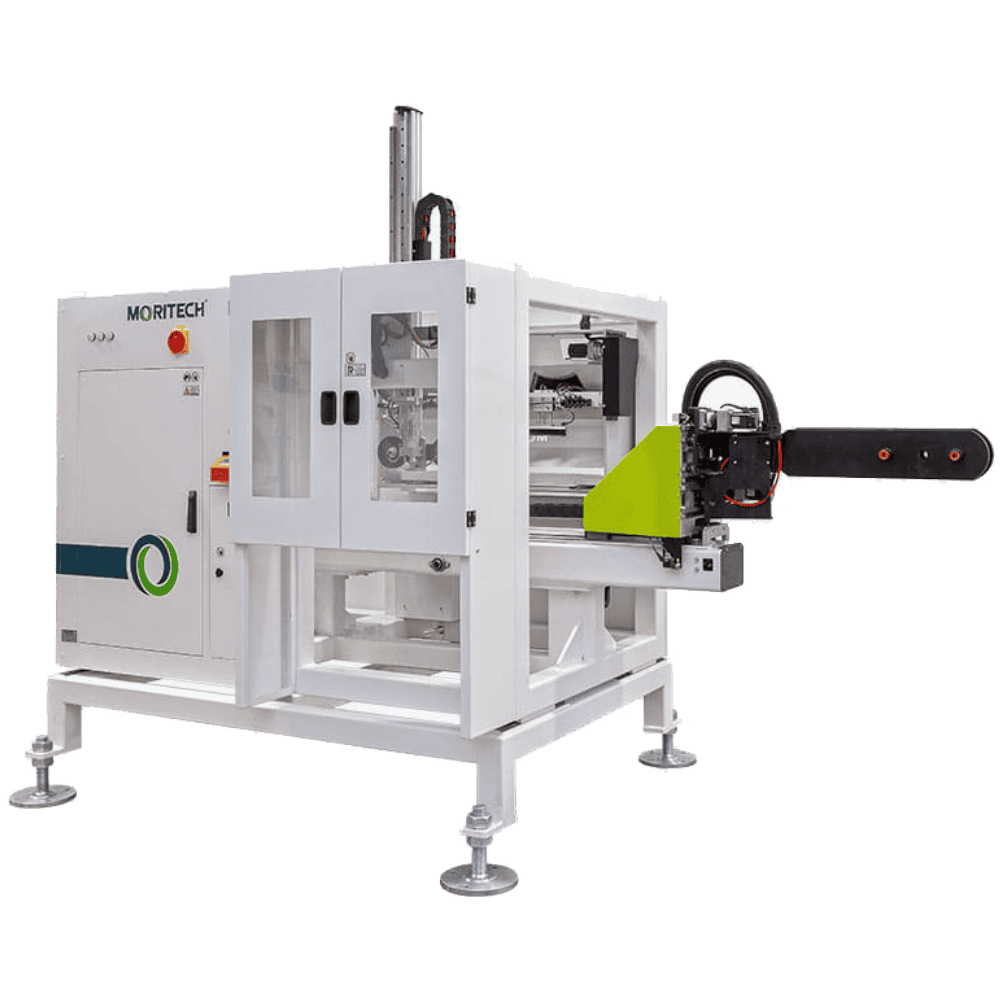

The TX2100 side-entry robot is the ideal solution for fast production cycles in particular.
Injection tonnage: 180 to 600 tons
Dry removal cycle time: 1.0 sec.
Duration of the complete drying cycle of the robot: 1.0 sec.
Model | Axis movements (mm) | Operating principle | Linear position repeatability (mm) | Injection tonnage (ton) | ||
---|---|---|---|---|---|---|
Vertical (Z) | Injection mold | Traverse (X) | ||||
TX2100 | 900 | 230×2 | 2100 | AC servo motor, toothed wheel and toothed belt | 0.1 | 180~600 |
Minimum infrastructure requirements
Power source | Power consumption (kVA) | Maximum power consumption (kW) | Air pressure (Bar) | Air consumption (Nl/revolution) | Net weight (kg) | |
---|---|---|---|---|---|---|
Main body | Switch cabinet | |||||
Three-phase AC 380V ±10% (50/60Hz) | 3.2 | 1.9(*3) | 6~8(*4) | 2.6 | 240 | 1.1 |
(*3) The value was calculated considering approximately 60% of power consumption.
(*4) Dry air without oil and moisture is required.

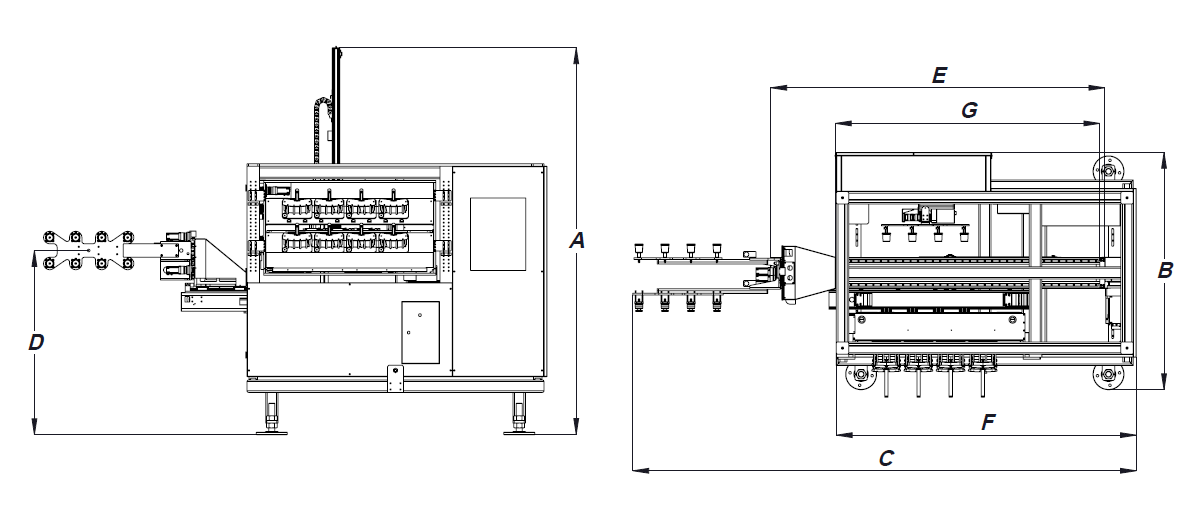

Technical drawing
